OUR HARDEST-HITTING HARDTAIL KEEPS COMING BACK FOR MORE. THIS IS WHERE THE FUN STARTS: MULLET SETUP, A LONG, SLACK AND LOW FRAME AND A BURLY FORK UP FRONT.
-
DESCRIPTION

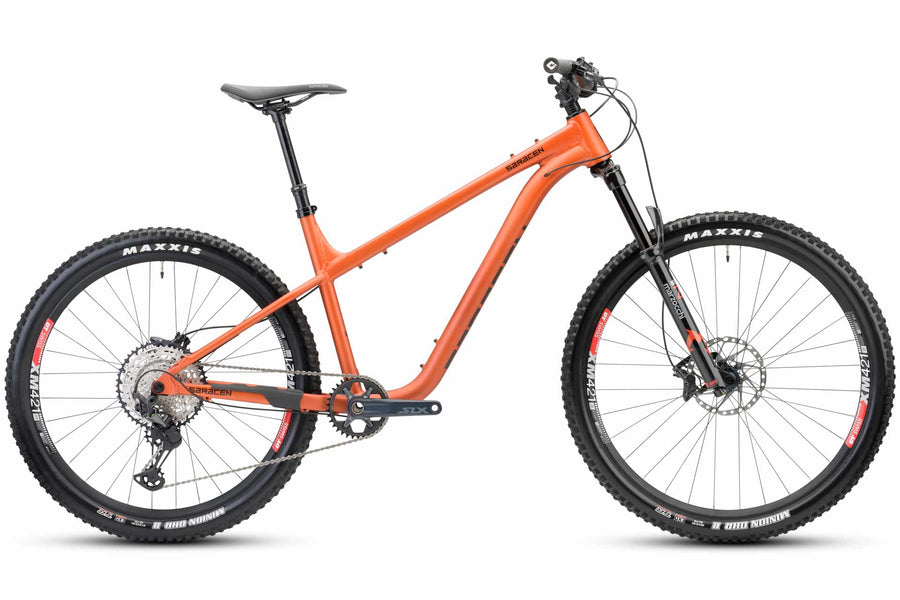

A hardcore hardtail is the original UK trail ripper and that's what our Mantra Elite is all about.
Tearing up the loam, slicing through slop or taking on the bikeparks, there's no trail the Mantra can't call home.
A 6061 hydroformed and butted aluminium frame is matched to our tried and tested LSL geometry to provide the ultimate ride.The Elite model brings a Marzocchi Bomber Z2 fork with 140mm of chunder-smoothing travel, making light work of the roughest trails.
A Shimano XT rear mech and SLX shifter work the wide-range 10-51 cassette making light work of the climbs, before reaping the rewards on the way back down.
Slam the 150mm KS Rage dropper as you plummet and test Shimano's Deore brakes to the limit, as the Maxxis Minion DHRII tyres provide predictable traction on every trail.
Shimano SLX hubs are matched with trail worthy DT Swiss XM421 rims for all mountain performance. Best of all, the whole package is tubeless ready - just add tape, valves and sealant to enjoy the full experience.
Please note - the Saracen Mantra does not come supplied with pedals. Add some from our gear store!
-
DETAILS
- Variant: Small
- Weight: 14.01 kg
Series 2 custom butted 6061
ALUMINIUM FRAME
MULLET 29" FRONT 27.5'' REAR
WHEEL SIZE
Marzocchi Bomber Z2
FORK
140mm
FORK TRAVEL
Shimano XT / SLX / Deore
DRIVETRAIN
Shimano Deore
BRAKES
Full Specifications
-
FRAME: SERIES 2 CUSTOM BUTTED AND HYDROFORMED 6061 ALLOY TUBESET
Headtube
ZS44-ZS56 tapered headtube
Technology
Chip-Slot dropout system / dropper post ready / Long Slack Low (LSL) geometry / UK developed
Axle
12 x 148mm Boost
-
FORK: MARZOCCHI BOMBER Z2
Travel
140mm
Technology
Tapered steerer / rebound adjust / sweep adjust rail damper
Axle
15x110 Boost
-
CHAINSET: SHIMANO SLX M7120
Model
32T
Chain Ring
170mm
- BOTTOM BRACKET: SHIMANO BSA, 73MM
-
SHIFTERS: SHIMANO SLX M7100
Speed
1x12 speed
-
REAR DERAILLEUR: SHIMANO XT M8100
Model
12 speed
-
CASSETTE: SHIMANO DEORE M6100
Speed
12 speed
Ratio
10-51T
- CHAIN: KMC X12
-
BRAKES: SHIMANO DEORE M6120
Brake Type
Hydraulic four piston
Rotor Size
180/180mm
- BRAKE LEVERS: SHIMANO DEORE M6100
-
HUBS: SHIMANO SLX
Front
M7100
Rear
M7110-B
Brake Fitting
Center lock
Front Axle Type
15 x 110 Boost
Rear Axle Type
12x148
Hole
32H
-
RIMS: DT SWISS XM421
Hole
32H
Size
29" front 27.5" rear
Rim Width
25mm internal
Tubeless Ready
Yes
- SPOKES: DOUBLE-BUTTED STAINLESS STEEL
-
TYRES: MAXXIS MINION DHRII
Model
Exo TR
Size
29 x 2.3 Front 27.5 x 2.3 Rear
-
HANDLEBARS: RACEFACE ATLAS
Width
820mm
Rise
35mm
Bend
6 degree
Bar Bore
35mm
-
STEM: RACEFACE AEFFECT
Length
50mm
Rise
6 degree
Clamp
35mm clamp
Type
Ahead
- HEADSET: PRESTINE PT-F13
-
SEAT POST: KS RAGE I
Routing
Internal
Size
30.9mm
Length
392mm
Travel
150mm (125mm on size small)
Lever
Southpaw remote
- SADDLE: SARACEN CUSTOM CRMO MTB
- GRIPS: ODI ELITE MOTION
- COLOUR: SATIN ORANGE
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.
Geometry
- 1251MM
- Wheelbase
SEAT TUBE |
360mm |
|---|---|
TOP TUBE |
609mm |
FRAME REACH |
440mm |
FRAME STACK |
629mm |
HEAD TUBE |
95mm |
HEAD ANGLE |
64.0° |
SEAT ANGLE |
75.0° |
CHAINSTAY |
440mm |
BB DROP |
20/45mm |
WHEELBASE |
1201mm |
SEAT TUBE |
410mm |
TOP TUBE |
637mm |
FRAME REACH |
465mm |
FRAME STACK |
638mm |
HEAD TUBE |
105mm |
HEAD ANGLE |
64.0° |
SEAT ANGLE |
75.0° |
CHAINSTAY |
440mm |
BB DROP |
20/45mm |
WHEELBASE |
1230mm |
SEAT TUBE |
460mm |
TOP TUBE |
664mm |
FRAME REACH |
490mm |
FRAME STACK |
647mm |
HEAD TUBE |
115mm |
HEAD ANGLE |
64.0° |
SEAT ANGLE |
75.0° |
CHAINSTAY |
440mm |
BB DROP |
20/45mm |
WHEELBASE |
1260mm |
SEAT TUBE |
510mm |
TOP TUBE |
687mm |
FRAME REACH |
510mm |
FRAME STACK |
656mm |
HEAD TUBE |
125mm |
HEAD ANGLE |
64.0° |
SEAT ANGLE |
75.0° |
CHAINSTAY |
440mm |
BB DROP |
20/45mm |
WHEELBASE |
1284mm |
